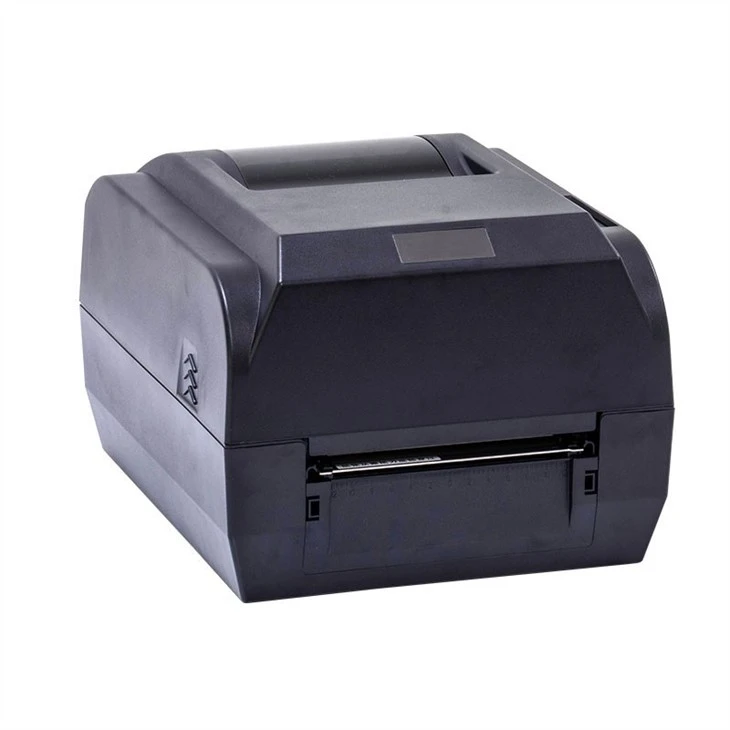

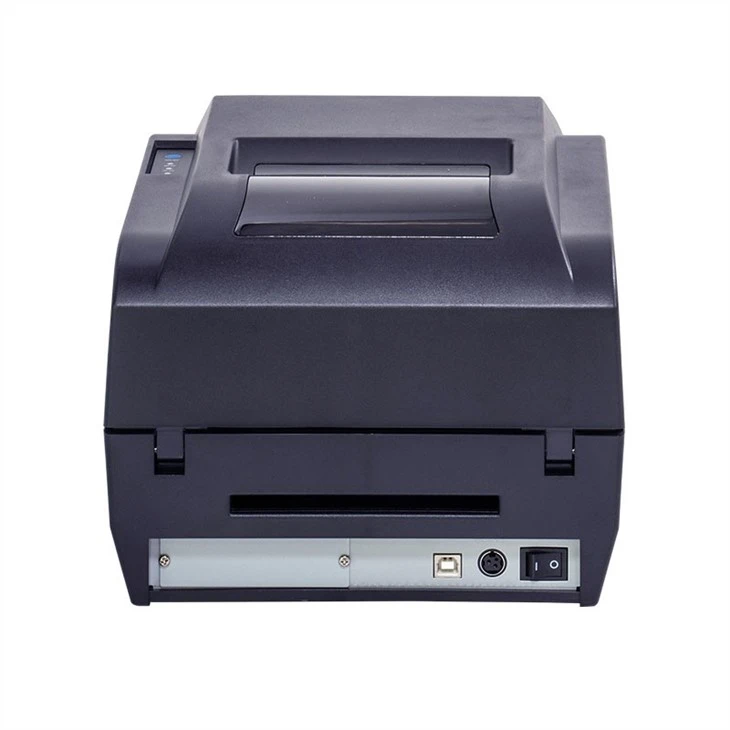

UHF RFID Label Printer
1.1 Features
• Easy to switch printer language between ZPL, EPL and TSC programming and label formats.
• Easy operation. With an open structure users can easily change paper roll and ribbon.
• Large media compartment. Ribbon as long as 300m and paper roll of Max. OD φ127mm can be used. Therefore users can change the ribbon and paper roll less often so as to work more efficiently.
•Wide range of connectivity. The USB interface is standard interface. Serial/parallel/Ethernet/ Wi-Fi/ Bluetooth are optional interfaces. Various interface choices suit all needs.
1.2 Printer specifications
|
Print Parameter |
Print method |
Direct thermal/Thermal transfer printing |
|
Print width |
108mm |
|
|
Print speed |
6IPS |
|
|
Print head |
Dot pitch: 0.125mm |
|
|
Resolution |
203DPIx203DPI |
|
|
Fonts |
Chinese |
GB18030 24×24 (Simplified/Traditional Chinese) |
|
Alphanumeric |
Resident single byte (ZPL): Font A, Font B, Font D, Font E, Font F, Font G, Font H, Font V0, Font GS, Font P, Font Q, Font R, Font S, Font T, Font U, Font V |
|
|
User-defined |
User-defined fonts can be downloaded into FLASH, SDRAM. |
|
|
Code Pages |
EPL: PC437;PC850;PC852;PC860;PC863;PC865;PC857;PC861;PC862;PC855;PC866; PC737;PC851;PC869;Windows 1252;Windows 1250;Windows 1251; Windows 1253;Windows 1254;Windows 1255 ZPL: PC850, windows 1250, windows 1252, windows 1251, windows 1253, windows 1254, windows 1256 |
|
|
Scalable/Rotation |
Zoom in 1~8 times in vertical or horizontal, rotate by 00, 900, 1800, 2700 . |
|
|
Graphics |
|
Graphics (Monochrome PCX, BMP) can be downloaded into SDRAM. |
|
Barcodes |
1D |
ZPL: Code11;Interleaved 2 of 5;Code 39;Code 49;Planet Code; EAN-8;EAN-13;UPC-E;UPC-A;Code 93;Code 128; Industrial 2 of 5;Standard 2 of 5;Codabar;MSI;Plessey
EPL: EAN-8;EAN-13;UPC-E;UPC-A;Code 39;Code 93;Code 128; Interleaved 2 of 5 |
|
2D |
ZPL: PDF417;CODABLOCK;Maxicode;Aztec;QR Code; Data Matrix; EPL: PDF417;Maxicode;QR Code; Data Matrix; |
|
|
Ribbon |
ID |
φ25.4mm |
|
OD |
φ68mm |
|
|
Length |
300m |
|
|
Width |
33~110mm |
|
|
Media Handling |
Media Spec. |
Thickness 0.06~0.18mm |
|
Width 25~118mm |
||
|
Length 8.9~400mm |
||
|
Max. OD ∮ 127mm |
||
|
Min. ID φ25.4/38.1mm |
||
|
Media cut |
Tear bar, auto-cutter, peeler |
|
|
Media type |
Roll paper, fold paper (continuous, non-continuous, continuous tag, wrist-band, normal media and all sorts of receipts ) |
|
|
Control Panel |
Key |
One key: Feed |
|
LED indicator |
Three LEDs: Power, Error, Status (Paper out/Ribbon out) |
|
|
Detect Function |
Standard sensors |
Black mark sensor, Media sensor, Ribbon sensor, Machinery sensor |
|
Optional kit sensor |
Label taken sensor |
|
|
Emulation |
Zebra, EPSON |
ZPL, EPL, TSPL |
|
Power Supply |
|
External power adapter |
|
Input |
AC 100V-240V, 50-60Hz |
|
|
Output |
24V DC, 3A |
|
|
Memory |
SDRAM |
8MB |
|
FLASH |
8MB |
|
|
Interface |
Standard |
USB (2.0 Full-Speed) |
|
Optional |
Serial (RS-232, DB25) |
|
|
Parallel Centronics (IEEE-1284) |
||
|
Ethernet: 10M/100M |
||
|
Wi-Fi (802.11b/g) |
||
|
Bluetooth: BT 3.0/4.0+EDR, SPP |
||
|
Software |
|
Driver (Windows 32bit/64bit), Bartender, SDK system, setup tool |
|
Physical Spec. |
Dimensions |
230(W)×290(D)×176(H)mm |
|
Casing Color |
Black |
|
|
Weight |
Approx 3kg |
|
|
Operating condition |
5~40℃/20~95%RH (non-condensing) |
|
|
Storage condition |
-20~60℃/≤95%RH (non-condensing) |
|
|
Safety Standard |
Safety |
UL, CE, FCC, CCC, EMC |
|
EMC |
Class B |
|
|
Certificate |
CCC, CE, FCC, UL, Energy star |
|
|
Optional kit |
|
Cutter, Peeler |
|
Reliability |
TPH lifetime |
150km (Condition: use specific thermal roll paper and the print rate is 12%) |
1.3 Package Contents:
|
Standard |
Printer |
1 unit |
|
|
Ribbon rewind paper core |
1 piece |
|
|
|
Ribbon sample |
1 piece |
Wax |
|
|
Ribbon spindle |
2 pieces |
|
|
|
Media sample |
1 piece |
Thermal transfer |
|
|
Media fixer |
2 pieces |
|
|
|
Media spindle |
1 piece |
|
|
|
Power adapter |
1 piece |
EU/UK/US |
|
|
Power cord |
1 piece |
|
|
|
Graphic installation guide |
1 piece |
|
|
|
CD-ROM |
1 piece |
Including user guide, Driver, setup tool, graphic installation guide |
|
|
Optional |
Peeler |
1 set |
|
|
Cutter |
1 set |
|
