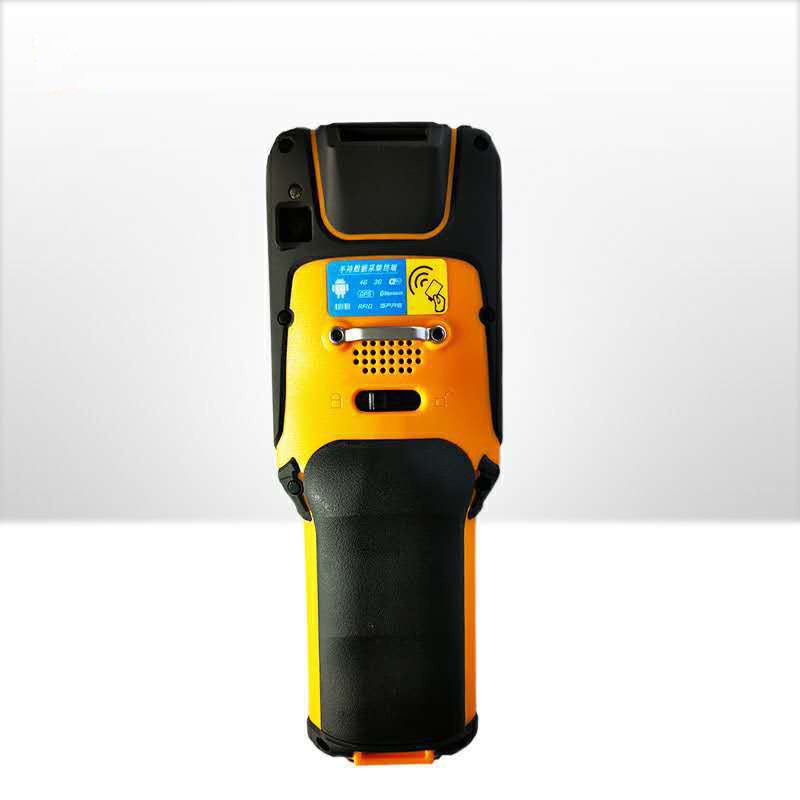

RFID Barcode Reader
This mobile reader integrating RFID and barcode scanning functions, it has a wide-ranging applications across many industries, including inventory management, supply chain, access control, event management, healthcare, library management, and asset tracking. Their versatility and ability to capture accurate data make them essential tools for improving efficiency, enhancing security, and streamlining operations in various domains.
SPECIFICATIONS | |||
PHYSICAL CHARACTERISTICS | |||
Dimension | 185mm(H)x71mm(W)x35mm(D)±2 mm | ||
Weight | Net Weight :200g | ||
Display | 3.5 in. TFT-LCD(480*800)touch screen with backlight | ||
Backlight | LED backlight | ||
Expansions | 1 SIM, 1 TF | ||
Battery | Rechargeable li-ion polymer, 3750mAh | ||
PERFORMANCE CHARACTERSTICS | |||
CPU | Cortex A53 1.2GHz quad-core | ||
Operating System | Android 7.0 | ||
Storage | 2GB RAM, 16GB ROM, MicroSD(max 128GB expansion) (3GB+32GB optional) | ||
USER ENVIRONMENT | |||
Operating Temp. | -20℃ to 65℃ | ||
Storage Temp. | -20℃ to 70℃ | ||
Humidity | 5%RH to 95%RH(non-condensing) | ||
Sealing | IP65, IEC compliance | ||
DEVELOPMENT ENVIRONMENT | |||
SDK | Software Development Kit | ||
Language | Java | ||
Environment | Android Studio or Eclipse | ||
DATA COMMUNICATION | |||
WWAN | 4G/WCDMA/EDGE/GSM | ||
WLAN | IEEE 802.11a/b/g/n | ||
WPAN | Bluetooth 2.0/3.0/4.0 | ||
GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
DATA CAPTUER | |||
BARCODE READER(OPTIONAL) | |||
Bar Code | UPC/EAN,Code128,Code39,Code93,Code11,Interleaved 2 of 5,Code39，PDF417，Data Matrix，Common 1D barcodes | ||
COLOR CAMERA | |||
Resolution | 5.0 megapixel | ||
RFID READER(OPTIONAL) | |||
RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) | |
Protocol | ISO 11784&11785 | ||
R/W Range | 2cm to 10 cm | ||
RFID HF/NFC | Frequency | 13.56MHz | |
Protocol | ISO 14443A&15693 | ||
R/W Range | 2cm to 8cm | ||
ACCESSORIES | |||
Standard | 1xPower Supply | ||
Product details:
