SPECIFICATIONS

PHYSICAL CHARACTERISTICS
Dimension	177mm×72mm×23.7-48.8mm
Weight	Net Weight :500g (including battery)
Display	5.5 inch Gorilla Glass 3 9H TFT-LCD(720*1440)touch screen with backlight
Backlight	LED backlight
Keypads	Power key X1, Volume +/-, Scan key X2
Sensor	Gravity sensor, light sensor, distance sensor, vibration motor
Expansions	2 PSAM, 1 SIM, 1 TF
Battery	Standby≥350 hours, Working time≥12 hours, Charging for 3-4 hours
PERFORMANCE CHARACTERSTICS
CPU	Quad A53 2.0GHz quad-core
Operating System	Android 9.0
Storage	2GB RAM, 16GB ROM, MicroSD(max 128GB expansion)
USER ENVIRONMENT
Operating Temp.	-20℃ to 50℃
Storage Temp.	-20℃ to 70℃
Humidity	5%RH to 95%RH(non-condensing)
Drop Test	3.9ft./1.2 m 30 times drop to concrete across the operating temperature range
Sealing	IP66
DEVELOPMENT ENVIRONMENT
SDK	Software Development Kit
Language	Java
Environment	Android Studio or Eclipse
DATA COMMUNICATION
WWAN	TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7,17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN	2.4GHz/5GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN	Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS	GPS(embedded A-GPS), accuracy of 5 m
DATA CAPTUER
BARCODE READER(OPTIONAL)
1D barcode	1D laser engine	Newland EM1365-LD
	Symbologies	EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128,Code 93,ITF-6,ITF-14,Interleaved 2 of 5,Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey,ect
2D barcode	2D CMOS Imager	Honeywell N6603/Newland E3090
	Symbologies	PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code. etc.
COLOR CAMERA
Rare Camera	13.0 megapixel
Front Camera	2.0 megapixel
RFID READER(OPTIONAL)
NFC	Frequency	13.56MHz
	Protocol	ISO 14443A/B, ISO 15693
	R/W Range	2cm to 5cm
Thermal Sticker Printer
Print Speed	60 mm/s
Dot Per Inch	384 dots
Paper Width	58 mm
Paper Diameter	35 mm
Paper Type	Self-adhesive, black label
ACCESSORIES
Standard	1xPower Supply; 1xUSB data cable, 1xScreen protection film, 1xUser manual

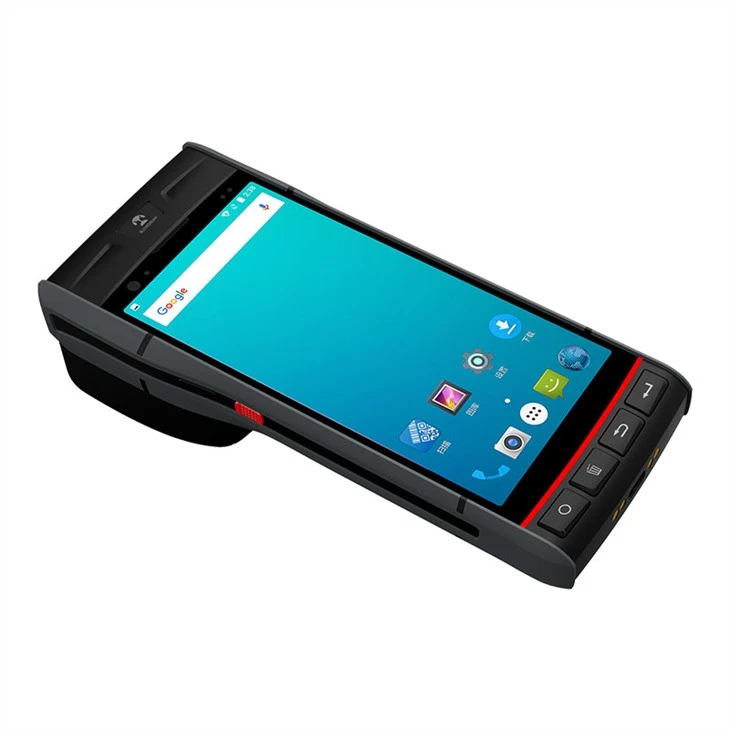

This RFID reader with printer is a device that combines the functionality of an RFID reader and a printer in a single unit. It allows for reading RFID tags or cards and printing relevant information or labels based on the data collected

RFID Reading Capability: The device includes an 13.56 MHZ NFC reader module that can read data from RFID tags or cards. It uses radio frequency technology to communicate with the RFID tags and retrieve the encoded information.
Data Processing and Printing: After reading the RFID data, the device can process the information and generate printed output based on the collected data. This can include printing labels, tags, receipts, or other customized forms containing relevant details from the RFID tags.
Printer Functionality: The device incorporates a printer mechanism that can produce physical copies of the collected RFID data. It may use thermal printing technology, inkjet printing, or other printing methods, depending on the specific device model.
Customization and Formatting: The device may provide options for customizing the printed output, such as selecting fonts, adjusting print sizes, adding logos or images, and formatting the layout according to specific requirements.
Application Versatility: RFID readers with printers are used in various industries and applications where both RFID data collection and printing are required. This can include retail, logistics, inventory management, access control, ticketing systems, healthcare, and more.
Software and Configuration: The device may come with dedicated software or configuration tools that allow users to set up printing parameters, customize data formatting, and manage the RFID reading and printing functionalities.
