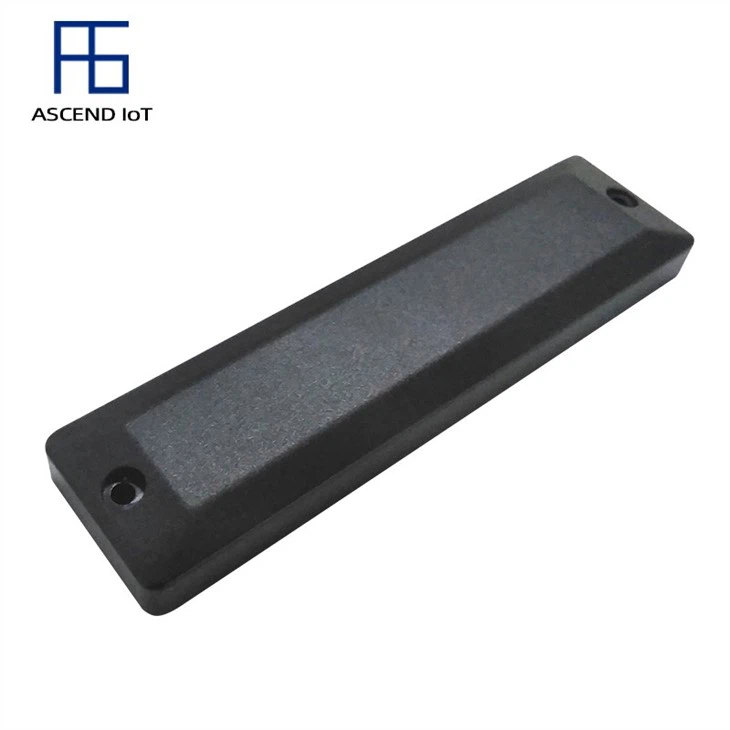

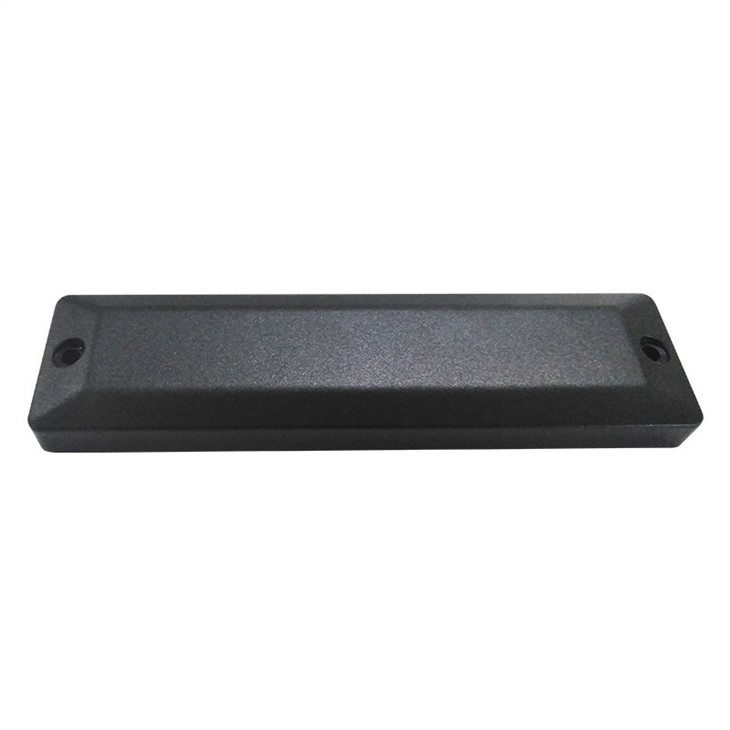

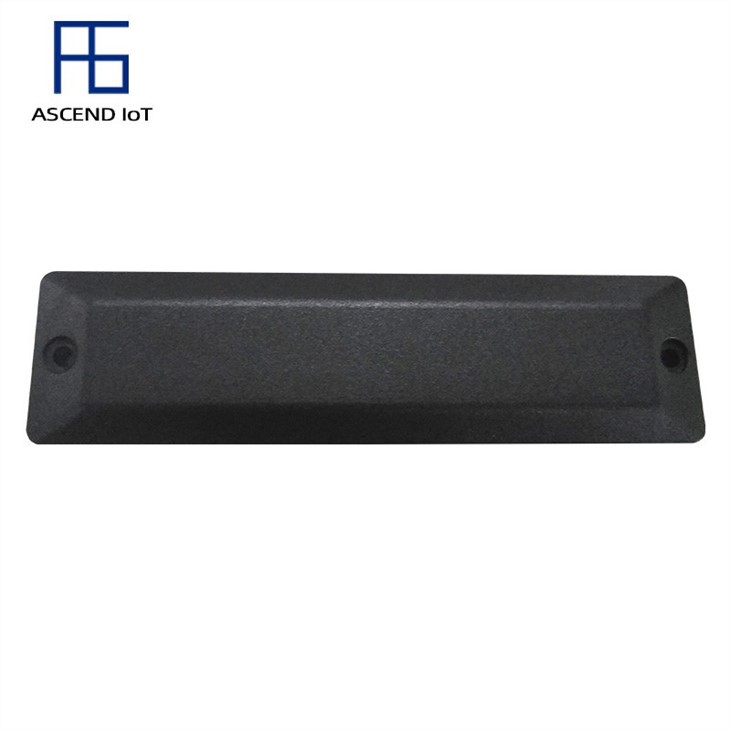

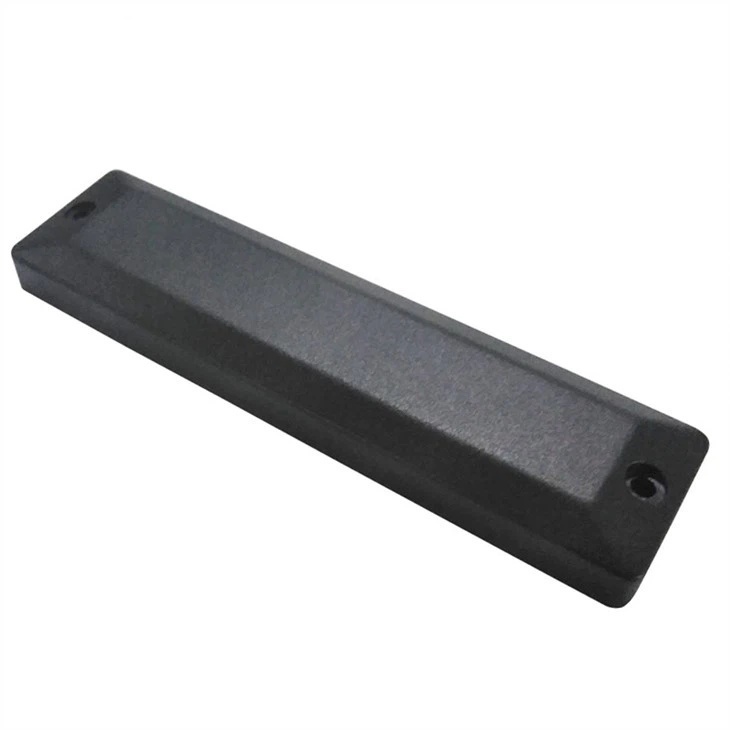

UHF RFID Tag for Metal Containers
Product Parameter:
Physical Features: | ||
Model | ASA135X42 | |
Material | ABS | |
Dimension | 135mm(L)X42mm(W)X8mm(H) | |
Weight | 30g | |
Working Temperature | -40~ +85℃ | |
Storage Temperature | -40~+85℃ | |
RFID Features | ||
RFID Protocol | ISO/IEC 18000-6 Type C (EPC Gen2) | |
Frequency | 902-928MHz , 865~868MHz | |
Chip | H3, (other UHF chips can also be available) | |
EPC | 96 bits | |
USER | 512 bit | |
TID | 96 bits | |
Reading Rang | 5-12 m | |
Other Features | ||
Data Retention | ＞10 years | |
Write Cycles | 100,000 times | |
Installation | Stick or screw on metal surface | |
Customization | Logo/Numbers/Texts/Barcode/QR Code, ect | |
Packing | 300pcs/box | |
Application | Logistic management | |
Using UHF (Ultra High Frequency) RFID tags for metal containers presents certain challenges due to the reflective and interference properties of metal surfaces. However, specialized UHF RFID tags designed for metal environments, often known as "on-metal" or "metal-mount" RFID tags, have been developed to address these challenges.
UHF RFID tags for metal containers are designed to work efficiently on or near metal surfaces. They often have a rugged and durable construction to withstand industrial environments. And a spacer or foam layer between the tag and the metal surface. This layer helps to create distance and reduce the negative effects of metal interference.
Long Read Range: While the read range may be slightly shorter compared to non-metal applications, on-metal UHF RFID tags still offer respectable read ranges, especially when compared to other RFID frequencies.
Metal containers and assets in the oil and gas industry can be tagged to enhance safety compliance, maintenance scheduling, and equipment tracking.
