Metal Mount RFID Tags

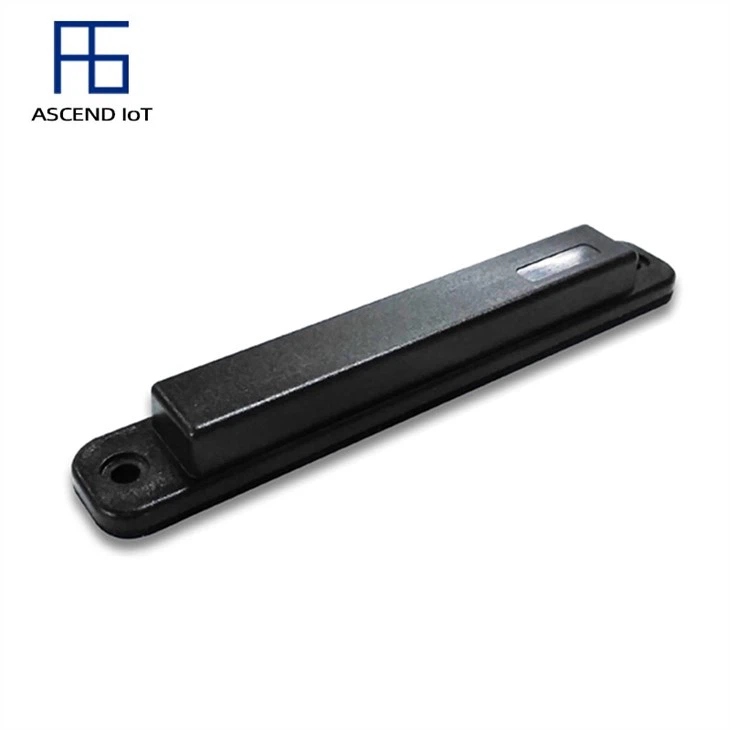

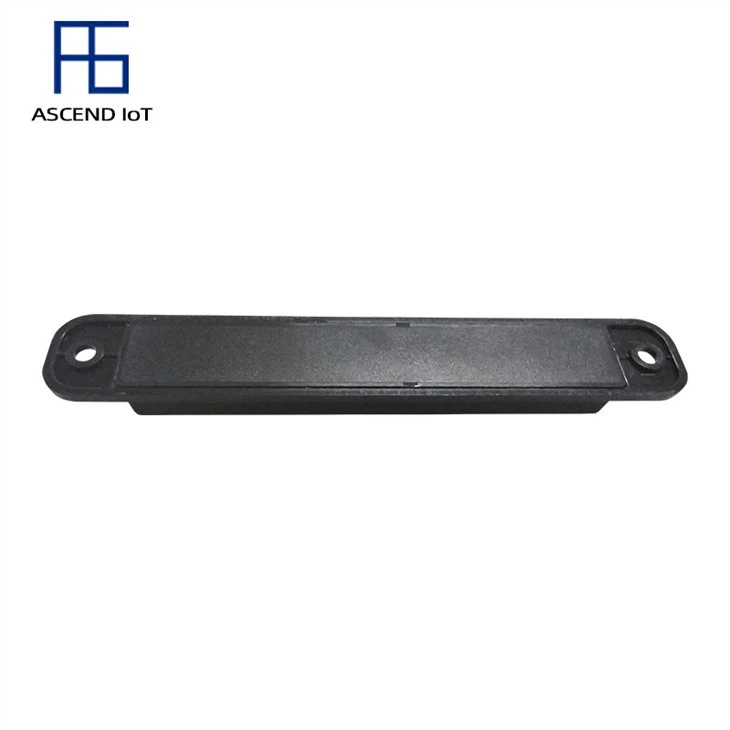

This UHF metal mount RFID tag was made as a long and slim shape to compatible to the narrow space on the metal asset. The holes in the two sides of the tag can work with the screws to fix the tag on the metal surface, like metal pole, metallic shelf, pallet, power facility and so on.

Send Inquiry

Product Parameter:

Physical Features:
Model	ASA135X21
Material	ABS
Dimension	135mm(L)X21mm(W)X12mm(H)
Weight	27g
Working Temperature	-40~ +85℃
Storage Temperature	-40~+85℃
RFID Features
RFID Protocol	ISO/IEC 18000-6 Type C (EPC Gen2)
Frequency	902-928MHz , 865~868MHz
Chip	H3, (other UHF chips can also be available)
EPC	96 bits
USER	512 bit
TID	96 bits
Reading Rang	5-12 m
Other Features
Data Retention		＞10 years
Write Cycles		100,000 times
Installation		Stick or screw on metal surface
Customization		Logo/Numbers/Texts/Barcode/QR Code, ect
Packing		600pcs/box
Application		Storage rack management Metal shelf tracking Pallet tracking Pipeline patrolling, etc.

Product details:

Shipping and After Service

Shipping: DHL, FedEx, UPS.
We provide 2 full years factory warranty for all of the RFID metal mount tags, and 3 full years for the RFID writer and readers.
Message will be respond within 8 hours.

FAQ

1.Q: Can you make the RFID Anti Metal Tags in any color I like?

A: Yes, we can custom different colors.

2.Q: Does this UHF RFID Pallet Tag can be used outdoor?

A: Yes, it is rain-proof for outdoor using.

3.Q: Do you provide personal customization?

A: Yes, we can custom the color and printing as your request.

4.Q: Do you have samples in stock?

A: Yes, we would like to provide several samples to you to have a try.

5.Q: Is there a MOQ for this RFID Tray Tag?

A: Yes, the MOQ is 500pcs.
