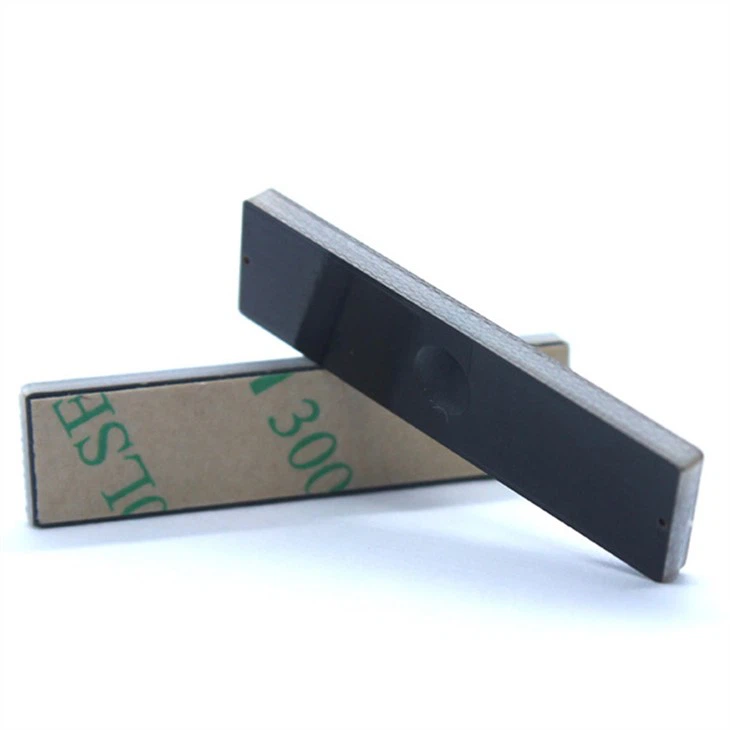

UHF Industrial RFID Tags

AscendIOT provides personal customization for the RFID tags to use in various of applications. This anti Metal RFID tags were widely applied in automatic production, and the environment of the production lines may be high temperature, low temperature, humid and dusty, we need a strong enough RFID tag that can work in such a bad and complicate environment. It can provide fast return on investment.

Send Inquiry

Product Parameter:

Physical Features:
Model	ASP39X9
Material	PCB
Dimension	3993mm
Weight	4g
Working Temperature	-40~ +200℃
Storage Temperature	-40~+ 85℃
RFID Features
RFID Protocol	ISO/IEC 18000-6 Type C (EPC Gen2)
Frequency	902-928MHz , 865~868MHz
Chip	M4QT （the other UHF RFID chips are also available）
EPC	128 bits
USER	512 bit
TID	96 bits
Reading Rang	2-4.5 m
Other Features
Data Retention	＞10 years
Write Cycles	100,000 times
Installation	Stick
Customization	EPC serial numbers program
Packing	400pcs/bag
Application	Automatic manufacturing Production line management Quality control Process tracking Metal asset management, ect
