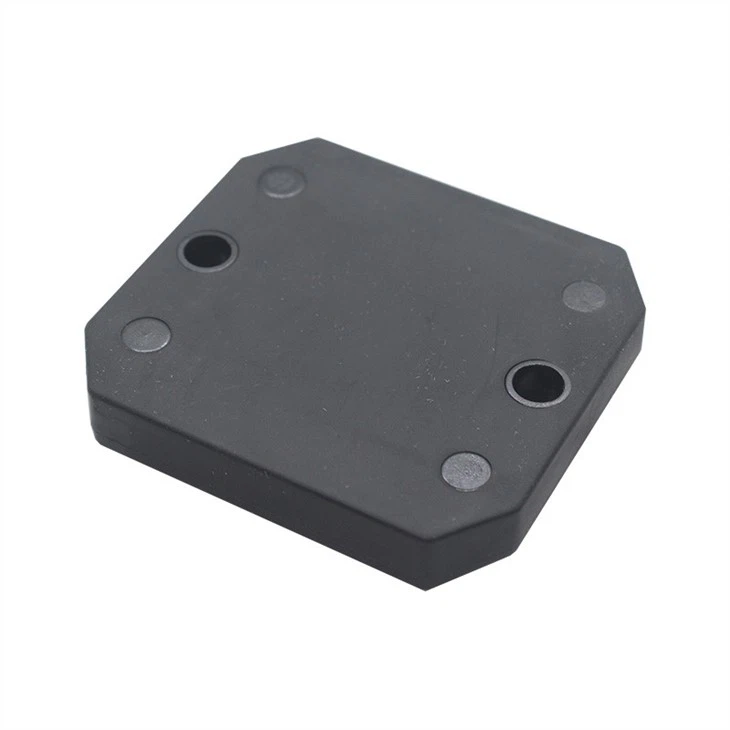

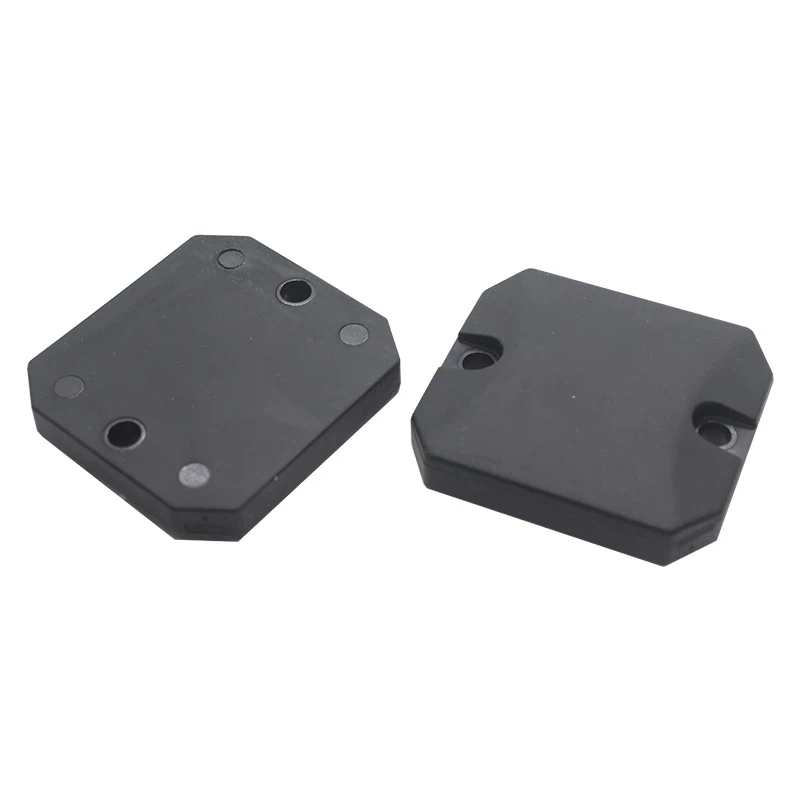

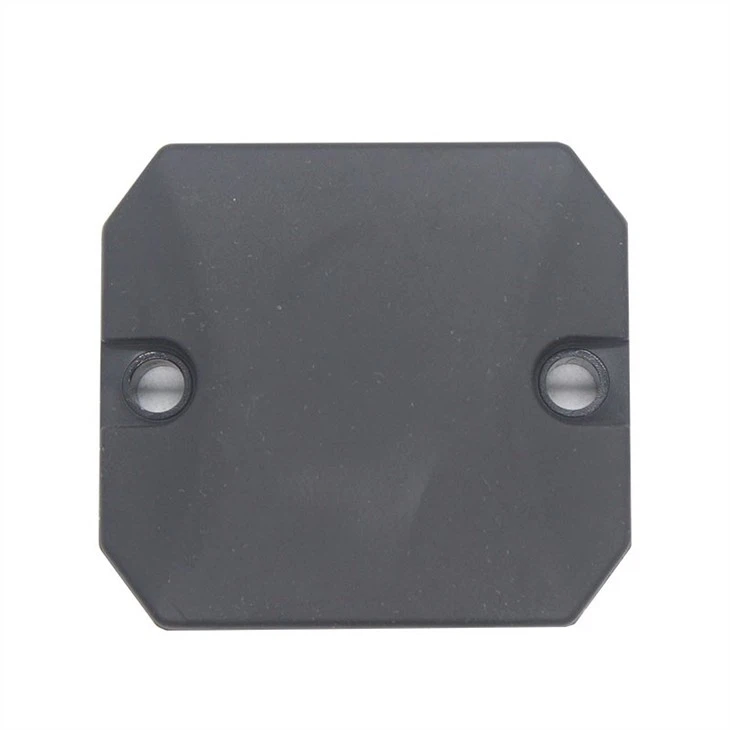

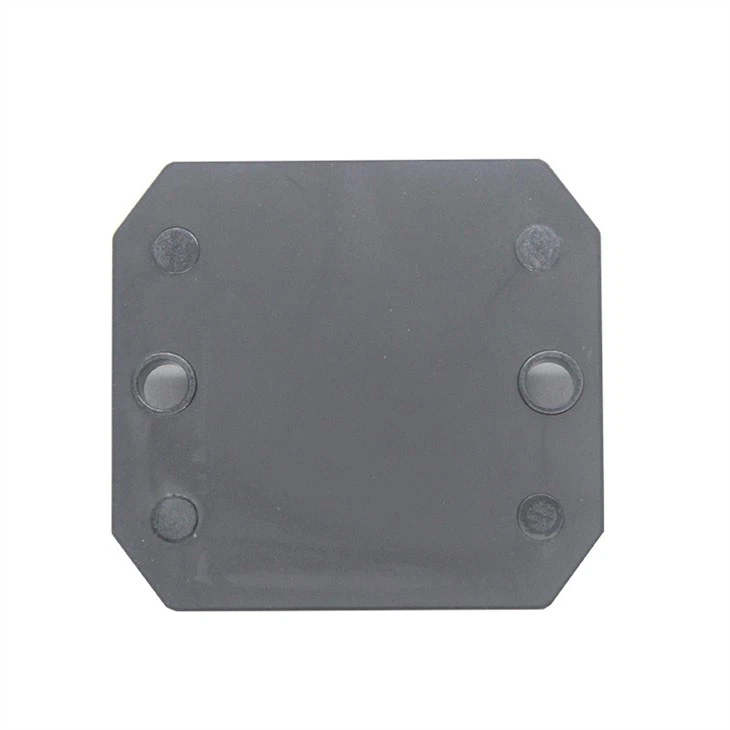

Concrete RFID Tags
Product Parameter:
Physical Features: | |
Model | ASS5147 |
Material | Engineering plastics |
Dimension | 51*47*10mm, diameter of the hole: 5mm |
Weight | 23.5g |
Working Temperature | -40~ +100℃ |
Storage Temperature | -40~+ 200℃ |
RFID Features | |
RFID Protocol | ISO15693 |
Frequency | 860-960MHz |
Chip | MR6-P |
EPC | 128 bits |
User | 64 bits |
TID | 96 bits |
Reading Rang | On metal surface: 4.5-10 m |
Embedded into concrete for 5cm: 1.5-4 m | |
Embedded into concrete for 10cm: 0.8-2 m | |
Other Features | |
Data Retention | ＞10 years |
Write Cycles | 100,000 times |
Installation | Stick, screw, magnet, embedded to fix on the metal asset |
Customization | Series numbers programmable |
Packing | 50pcs/box |

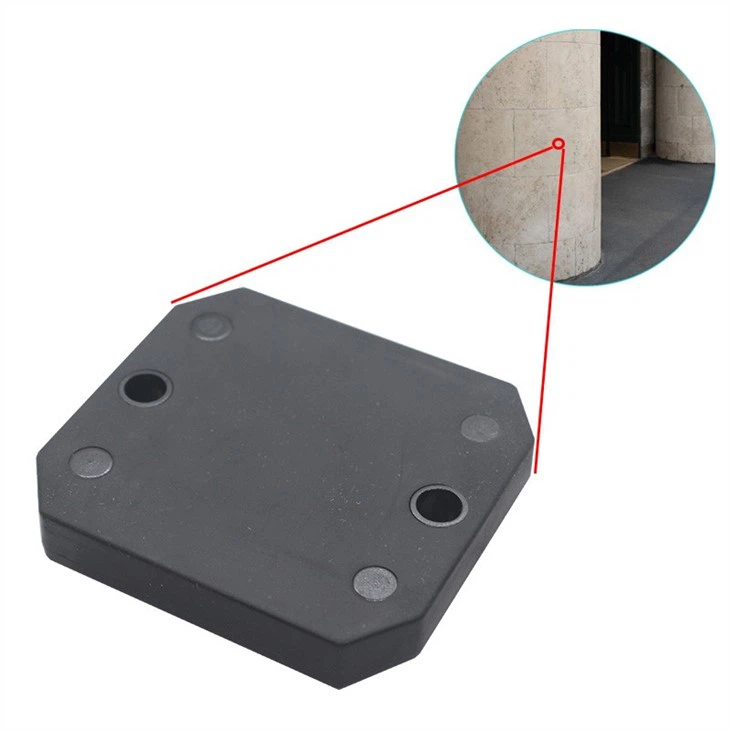

Application | Identify building materials |
Product details:
Shipping and After Service
Shipment options: DHL, FedEx, UPS.
Factory warranty: 2 full years
FAQ
Q: Does this Concrete Embedded RFID tag can be buried under a asphalt road?
A: Yes, it is tough enough.
Q: Can you make a program the data for this RFID concrete tag?
A: Yes, we can program it for you.
Q: Can I customize the dimension for this RFID cement tag?
A: Yes, please message us for your customization requirements.
Q: Can you send samples to us to have a check?
A: Yes, we can provide free samples, but you need pay the shipping fees yourself.
Q: Is there a MOQ?
A: Yes, the MOQ is 500pcs.
