RFID Tree Nail Tag
Product Parameter:
Physical Features: | |
Model | ASR9LFN |
Material | ABS |
Length | 36 mm |
Diameter | 9 mm |
Weight | 2.5 g |
Working Temperature | -40~ +80℃ |
Storage Temperature | -40~+ 80℃ |
RFID Features | |
RFID Protocol | ISO 11784/785 |
Frequency | 125 KHZ/134.2 KHZ |
Chip | EM4305/EM4200/TK4100/HG1/HG2 |
Memory | 64/256/512/1024 bits |
Reading Rang | 1-10 cm |
Other Features | |
Data Retention | ＞10 years |
Write Cycles | 100,000 times |
Installation | Implant |
Customization | Serial numbers programmable |
Packing | 50pcs/bag |
Application | Tress identify Woods patrolling management Plant management Project/Construction patrolling management, ect |

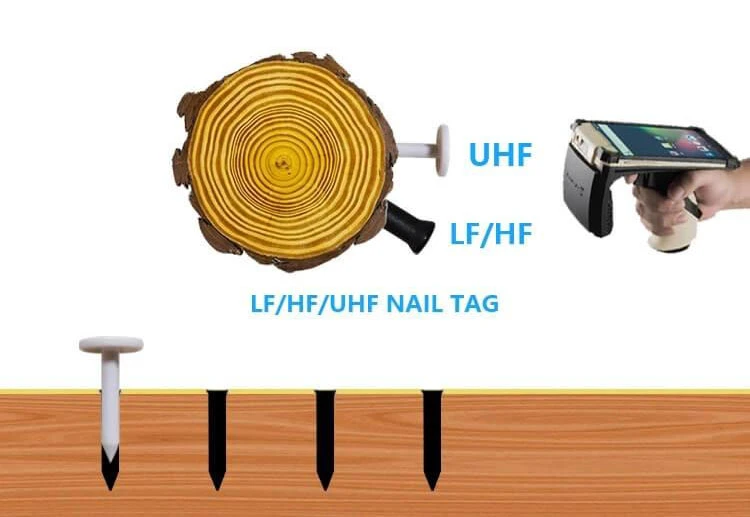

How do you tag a tree via RFID Nail?
RFID tree tagging using RFID nail tags is a method of attaching RFID tags to individual trees. These RFID tags are typically in the form of nails or
fasteners embedded with an RFID chip. The purpose of RFID tree tagging is to automate tree identification and data collection for various
applications in forestry, arboriculture, and environmental monitoring.
Select RFID Nail Tags: Choose RFID nail tags suitable for outdoor use and tree monitoring. These tags are often designed to withstand
environmental conditions, including moisture and temperature variations.
Assign Unique IDs: Each RFID nail tag is associated with a unique electronic identification code stored on an RFID chip. The RFID system
should be set up to ensure that each tree is tagged with a unique ID.
Tagging Process:
Locate the tree to be tagged.
Drill a small hole into the tree trunk or branch.
Insert the RFID nail tag into the hole.
Secure the tag by tapping it gently with a hammer or mallet.
4. Data Association: Link the unique RFID tag ID to relevant data about the tree, such as species, age, health status, GPS coordinates, and any
other relevant information. This data is typically stored in a database or software system.
