RFID Tag for Retail

Retail inventory management is an important work which determines the running cost and profit for the company. The traditional manual way to manage the inventory is high cost and low efficient, thanks to the RFID technology, we can tag the RFID retail sticker on the goods in the warehouse, and with the help of the RFID readers, we can scan all the RFID goods labels in a short time, and then get the exactly inventory data, the work for inventory management can be done in a high efficient way.

Send Inquiry

Description:

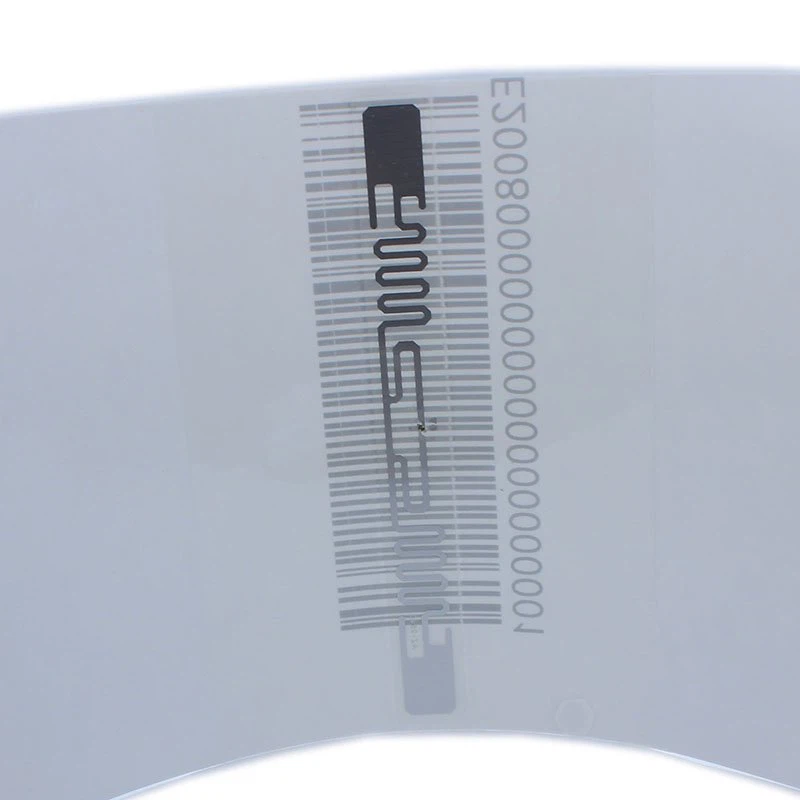

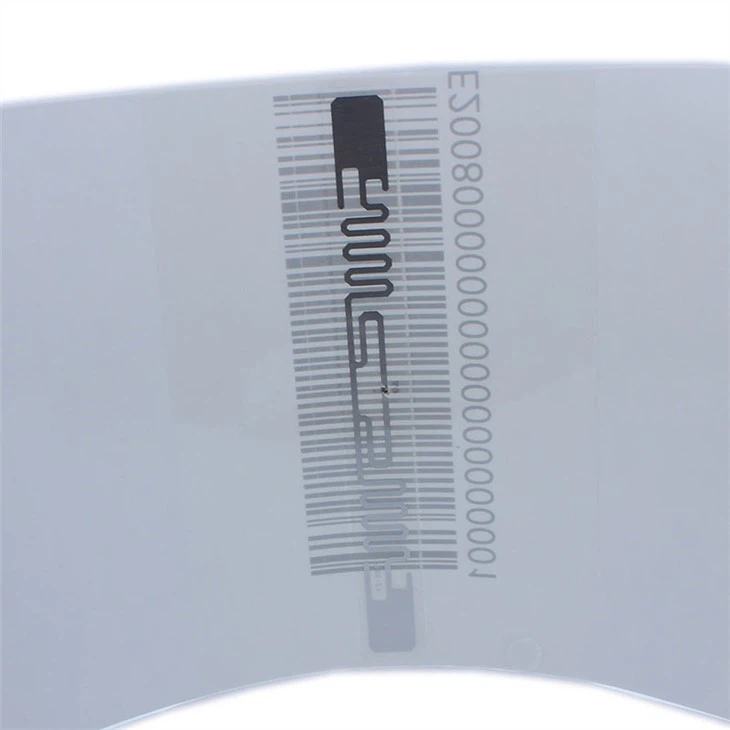

Physical Specifications:
Item	ASUHF96X30
Material	Coated Paper/PET
Antenna Dimension	8.15*94.8 mm
Label Dimension	98*13 mm
RFID Specifications:
Protocol	EPC global Gen2, ISO/IEC 18000-6c
Frequency	860-960 MHz
Chip	H3
EPC	96 bits
USER	512 bits
TID	96 bits
Reading Range	5-8 meters
Data Retention	＞10 years
Write Endurance	100,000 times
Application	Inventory management Warehouse management Retail management, etc.
Environmental Specifications
Working Temp	-40℃~+85℃ (-40° to +185°F)
Storage Temp	-40℃~+85℃ (-40° to +185°F)
Personal Customization & Packing
Customization Content	Logo/texts/numbers/QR code/Bar Code print, Data program, ect

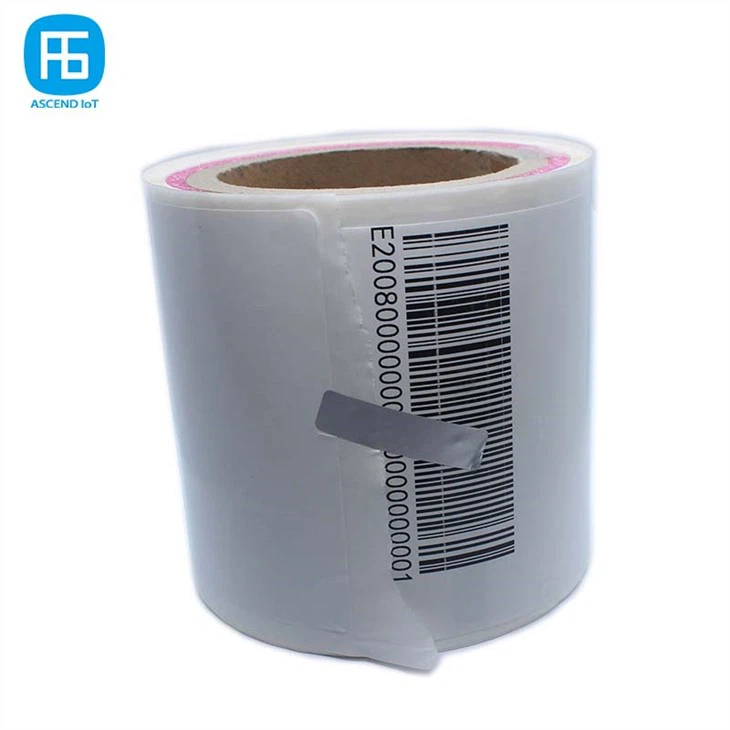

Packing Details	2000pcs/roll
