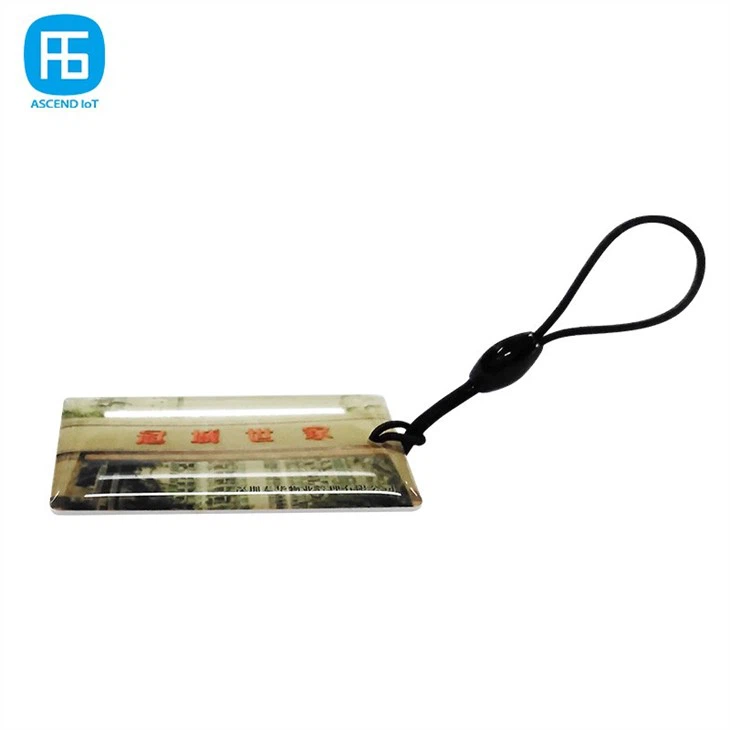

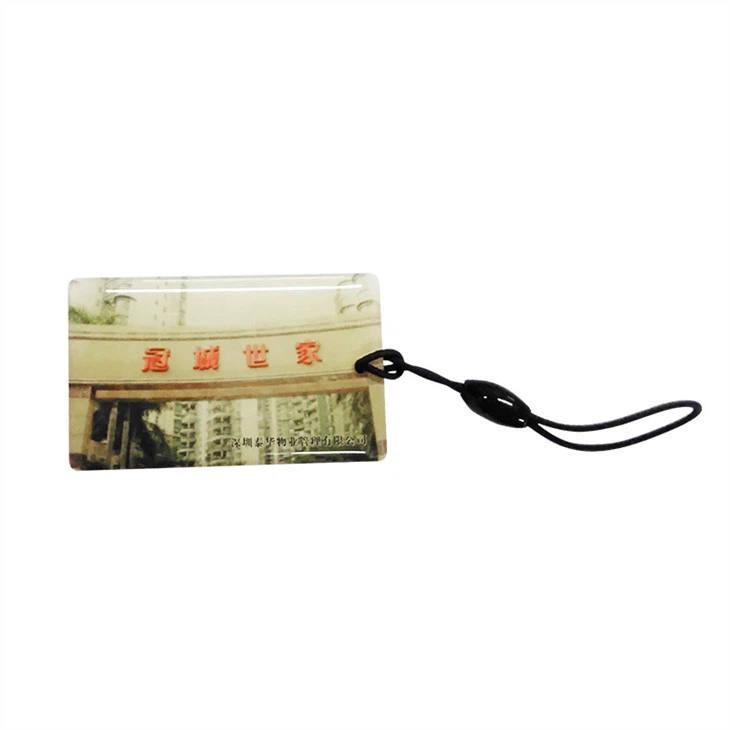

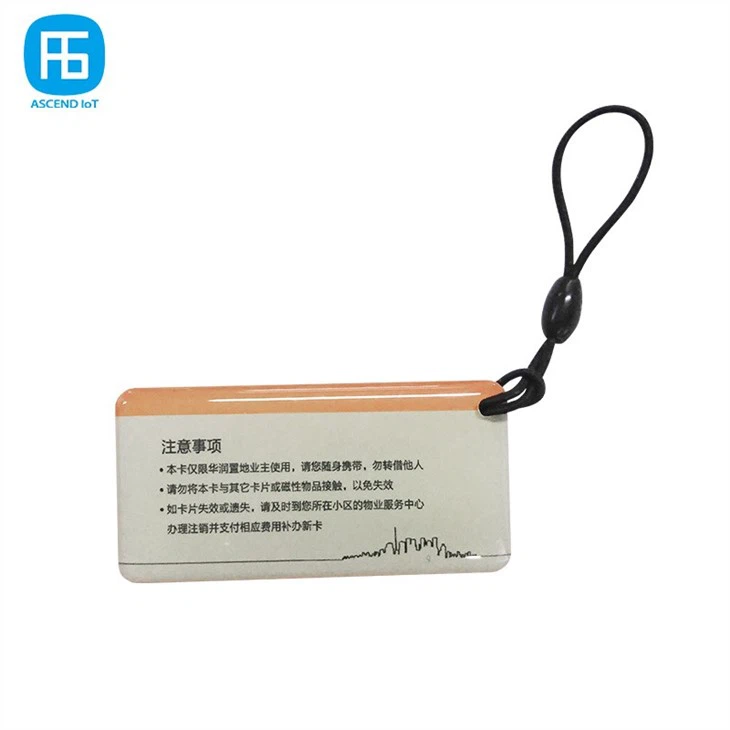

RFID Door Key
Description:
Physical Spec: | |
Item NO | ASPV50X30 |
Material | PVC |
Dimension | 50*30 mm |
Thickness | 3.9 mm |
RF Spec: | |
Protocol | ISO7815, ISO11784/85 (LF) |
Frequency Band | 125KHZ/13.56 MHz |
IC Type Optional | LF: TK4100, EM4200, EM4305, EM4450, T5577, Hi tag 1/2. Fudan F08, MF Classic 1k / 4k, NTAG213/215/216, MIFARE Ultra light C, ICODE Slix Series, CUID (MIFARE and NTAG are the NXP Semiconductors-owned trademarks and are using under license). |
Memory/EEPROM | 64/256/512/1024 bits，144/504/888/1024/2K/4K/8K bytes |
Reading Distance | 1-5 cm |
Data Retention | ＞10 years |
Write Cycles | 100,000 times |
Epoxy RFID Door Key Fob for Access Control:
Unique Identification: Each epoxy RFID door keyfob is programmed with a unique identification number or code. When the key is brought into proximity with the RFID reader, the reader wirelessly scans the key's RFID chip and retrieves the identification information.
Access Granting: If the identification is valid and authorized, the access control system sends a signal to the door lock or access mechanism to unlock or release, allowing the individual to enter the secured area.
Access Denial: If the identification is invalid or unauthorized, the access control system denies access by keeping the door locked or activating an alarm, depending on the security protocol in place.
Epoxy RFID door keychains offer several advantages for access control, including convenience, security, and auditability. They eliminate the need for physical keys that can be lost or stolen, and they provide a higher level of security through unique identification and authentication. Additionally, access control systems can generate audit logs and reports, allowing administrators to track and review access events for security purposes or compliance requirements.
Hot Tags: rfid door key, China rfid door key suppliers, factory, NFC Epoxy Keychain, Epoxy NFC Keychain, nfc dog tag, Epoxy RFID Keychain, RFID Keychain Tag, RFID Key Tag
