Description:

Physical Spec:

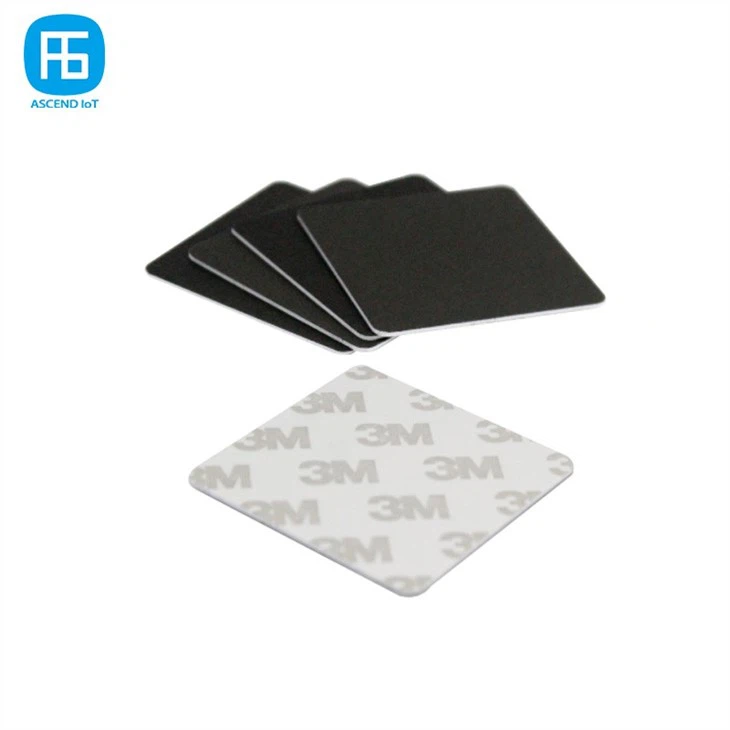

Item NO	ASPV30X30B
Material	PVC
Dimension	30*30mm
Thickness	2.7mm
RF Spec:
Protocol	ISO/IEC14443 A, NFC Forum 2 (NFC)
Frequency Band	13.56 MHz
IC Type Optional	Fudan F08, MF Classic 1k / 4k, N tag213/215/216, MF Ultra light C, MF DES Fire 2K/4K/8K, MF Plus X /S 2K /4K, I code Slix S
Memory/EEPROM	144/504/888/1024/2K/4K/8K bytes
Reading Distance	1-5 cm
Data Retention	＞10 years
Write Cycles	100,000 times
Application	Patrolling management Metal asset management Warehouse management Shelves tracking Pallet tracking, etc.
Environmental Spec
Operation Temp	-40° to +70°C, 20% to 90% RH
Storage Temp	-25° to +90°C, 20% to 90% RH
Personal Customization & Packing
Custom Content	Logo/texts/numbers/QR code/Bar Code print, Data program, ect
Packing Spec	200pcs/box
