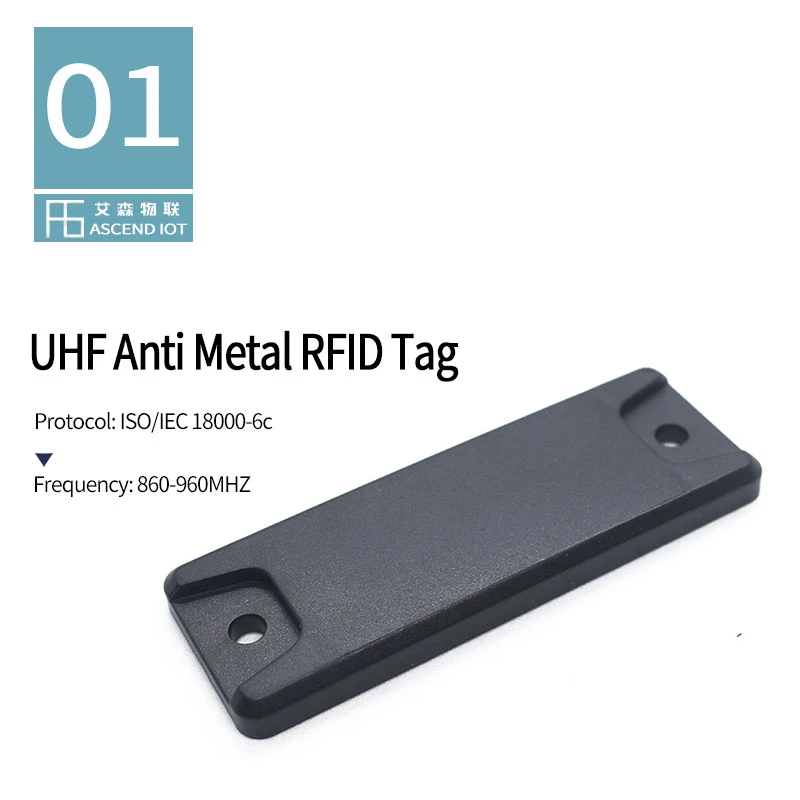

Mount On Metal RFID Tags
Product Parameter:
Physical Features: | ||
Model | ASABS75X25 | |
Material | ABS | |
Dimension | 75mm(L)X25mm(W)X5.3mm(H) | |
Weight | 15g | |
Working Temperature | -40~ +85℃ | |
Storage Temperature | -40~+85℃ | |
RFID Features | ||
RFID Protocol | ISO/IEC 18000-6 Type C (EPC Gen2) | |
Frequency | 902-928MHz , 865~868MHz | |
Chip | U8, (other UHF chips can also be available) | |
EPC | 128 bits | |
USER | 0 bit | |
TID | 96 bits | |
Reading Rang | 3-6 m | |
Other Features | ||
Data Retention | ＞10 years | |
Write Cycles | 100,000 times | |
Installation | Stick or screw on metallic asset | |
Customization | Logo/Numbers/Texts/Barcode/QR Code, ect | |
Packing | 500pcs/box | |
Application | Wooden pallet tracking | |
Attachment Methods: this RFID tags can be attached to metal surfaces using various methods, such as adhesive backing, riveting, or screwing. The attachment method depends on the surface of the asset.
Size and Shape: The size and shape of the mount on metal RFID tag can vary, allowing for flexibility in application and installation. Some tags are designed to be compact and discreet, while others may have larger dimensions for increased read range.
Data Capacity: The data capacity of mount on metal RFID tags varies based on the chip used and the type of memory (read-only or read-write). ASCENDIoT provide various of options and suggestions basing on your applications.
