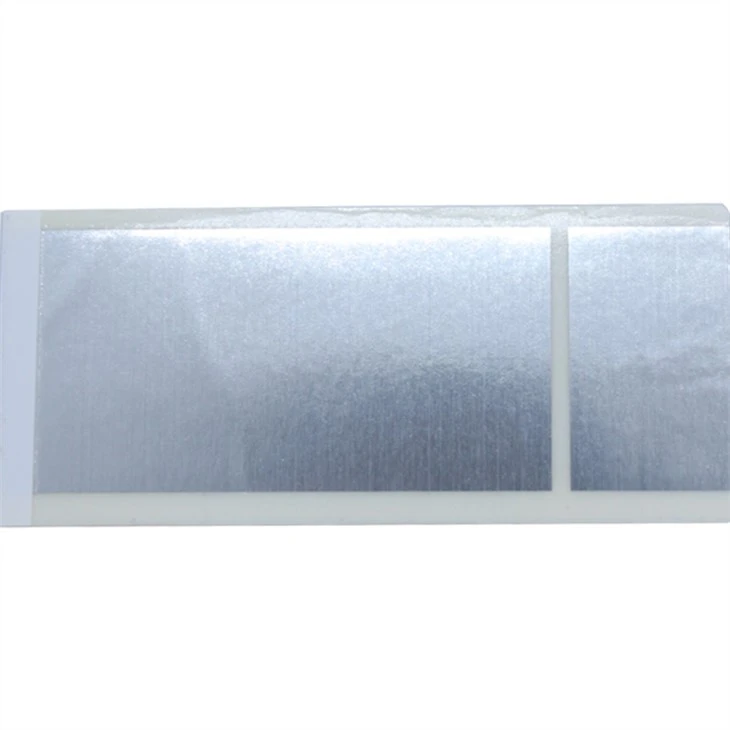

Long Range UHF RFID Label

This passive UHF RFID anti metal label is soft design and printable for any personal customized information. Thanks to it's big size (80*35mm), this UHF RFID on metal label can be scanned by the fixed reader from 6 meters away, such a long range RFID metal label is a ideal solution for IT asset, power facility, supply chain and inventory management.

Send Inquiry

Mainly Parameter:

Physical Specification:
Item NO	ASF80X35
Material	PET
Dimension	80*35mm
Operation Temp	-40~ +85℃
Storage Temp	-40~+ 85℃
RFID Specification:
Protocol	ISO/IEC 18000-6 Type C (EPC Gen2)
Frequency Band	902-928MHz , 865~868MHz
IC Type	MR6
EPC Area	96 bits
USER Area	0 bit
Reading Distance	500-600 cm
Data Retention	＞10 years
Write Cycles	100,000 times
Application	IT asset tracking Furniture management Goods shelves identify Pallet tracking Stain steel pipe identify, etc.
Others
Installation		Stick
Compatible printer		Zebra ZT410/RZ400/R110Xi4; SATO CL4NX etc
Customization		Printing, EPC
Packing		500pcs/roll
