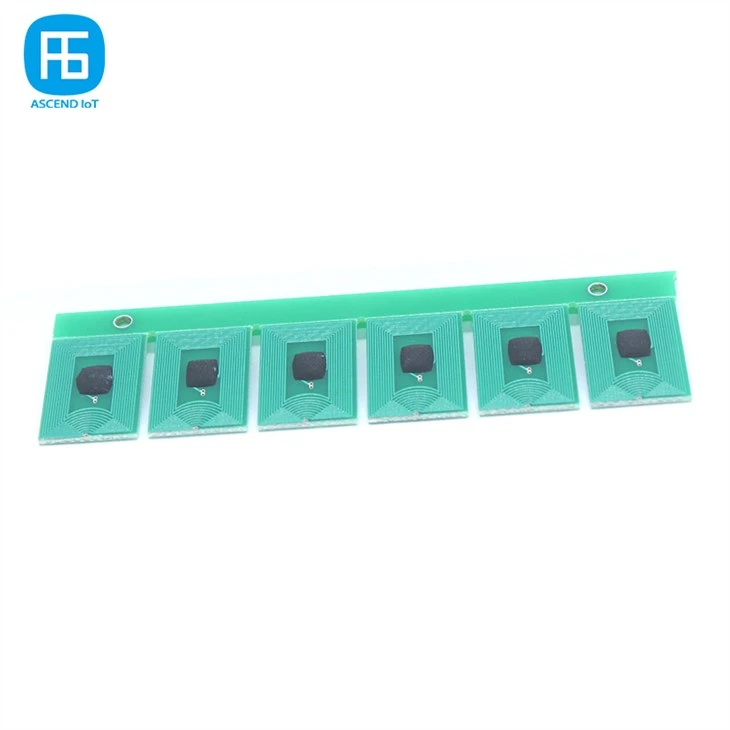

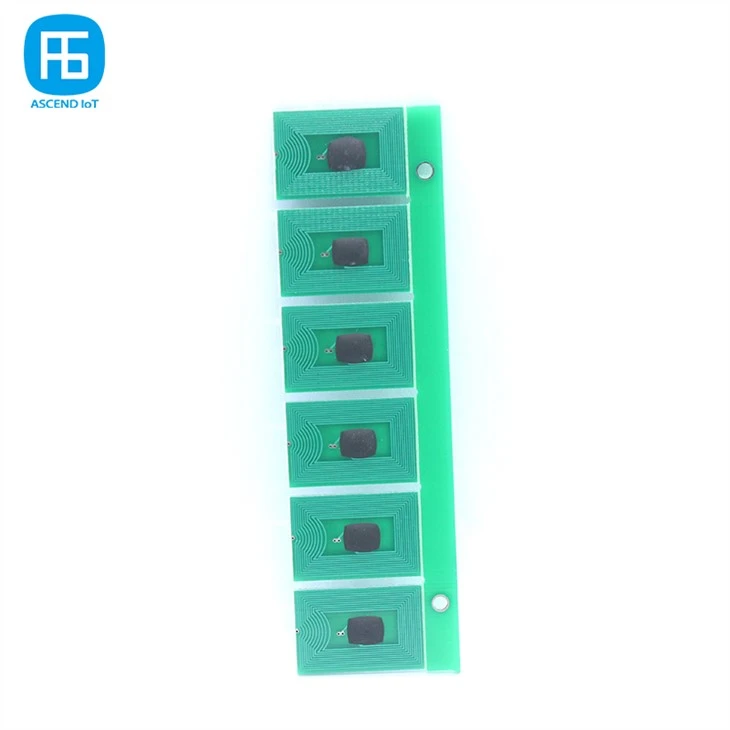

NFC PCB Tag
These NFC PCB tags can be embedded or implanted into products during the manufacturing process. The tags are typically integrated into the product's PCB or other components, allowing them to be read and programmed with information using an NFC-enabled device.
Mainly Parameter:
Physical Specification: | |
Item NO | ASPC18X12 |
Material | PCB |
Dimension | 18*12*2 mm |
Weight | 1.7 g |
Operation Temp | -40~ +250℃ |
Storage Temp | -40~+ 85℃ |
RFID Specification: | |
Protocol | ISO/IEC 14443 A NFC Forum 2) |
Frequency Band | 13.56 MHZ |
IC Type Optional | Fudan F08, MIFARE Classic EV1 1k / 4k (S50/S70) NTAG 213/215/216, MIFARE Ultralight C, MIFARE DESFire 2K/4K/8K, MIFARE Plus X /S 2K /4K (MIFARE and NTAG are the NXP Semiconductors-owned trademarks and are using under license). |
Memory | 144/504/888/1K/2K bytes |
Reading Distance | 1-5 cm |
Data Retention | ＞10 years |
Write Cycles | 100,000 times |
Application | Silicone RFID bracelet Fabric NFC wristband RFID washable tag Anti metal tag, ect |
Embedding NFC PCB tags into products can provide a range of benefits:
NFC PCB tags can be embedded into smart home appliances, like Bluetooth speakers, allowing users to control and monitor the devices using an NFC-enabled smartphone or other device.
NFC PCB tags can also be implanted into products to provide anti-counterfeiting measures. By embedding an NFC tag into a product, such as a luxury watch or designer handbag, manufacturers can ensure that the product is genuine and prevent counterfeiting.
NFC PCB tags can be implanted into silicone wristbands during the manufacturing process. Then we get a NFC silicone wristbands which can be used for a variety of applications, such as contactless payments, event management, and access control.
NFC PCB tags can be implanted into medical devices and equipment, providing patient monitoring, tracking, and maintenance information.
NFC PCB tags can be embedded into vehicles and transportation systems, providing users with access to vehicle information, maintenance records, and other features.
NFC PCB tags can be embedded into toys and games, providing interactive experiences and allowing for customization or personalization of the product.
